    • Use a single software package for LabVIEW, RT and LabWindows Environments.
    • Numerous example VI’s that setup the most common applications. Customers can jump start their application and save hours or days of coding.
    • Excellent Documentation – Full User’s Manual to detail installation and provide VI function references.
    • Combine multi channel and multi protocol applications as desired. Each Alta channel or ARINC channel bank is independently controlled device.
    • Mix and Match NI LabVIEW applications on one channel and Alta’s advanced AltaView analyzer on other channel devices!
    • The user can also reference over 80 ANSI C language example programs that match up to the LabVIEW Vis

    Alta’s 1553 and ARINC products are supported standard by the most advanced Application Program Interface (API) library tools in the avionics industry: AltaAPI. This software tool kit’s architecture allows the user to build extremely powerful and portable applications.  Unlike most of our competitors, Alta’s design manages the low level hardware control registers to reduce the coding effort and make the application more reliable.

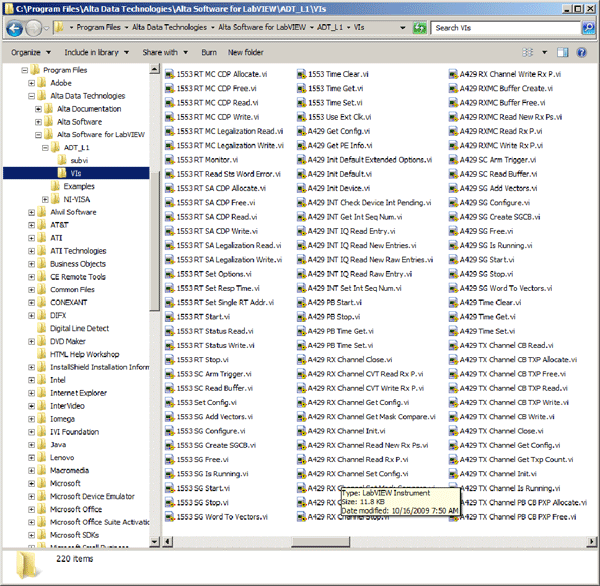

    AltaAPI-LV   VI List Example. Full Featured Library Support of AltaAPI!



    Combine with AltaView Bus Analyzer

    • AltaView is optional software, but is standard with cards purchased directly from NI!
    • Multi channel and multi protocol analyzer.  Offers many industry advanced features including full activity discovery, signal capture, archiving, full simulation, etc…
    • Run LabVIEW on one Channel and AltaView on other channels/cards for maximum flexibility in system integration.
    • Most advanced avionics analyzer in the industry.



    Alta Products Simplify System Integration and Test

    • The only product that can execute and pass the SAE AS4111 5.2 Protocol Tests.  This ensures system compatibility.
    • Advanced Software Tool Kit, AltaAPI and AltaAPI-LV provides unmatched capability to reduce coding effort and provide maximum flexibility.
    • Multi Protocol Card Combinations.  High density and multi protocol interface cards.  All supported by the same advanced API software tool kits.

  • Key Features

    • Use a single software package for LabVIEW, RT and LabWindows Environments.
    • Numerous example VI’s that setup the most common applications. Customers can jump start their application and save hours or days of coding.
    • Excellent Documentation – Full User’s Manual to detail installation and provide VI function references.
    • Combine multi channel and multi protocol applications as desired. Each Alta channel or ARINC channel bank is independently controlled device.
    • Mix and Match NI LabVIEW applications on one channel and Alta’s advanced AltaView analyzer on other channel devices!
    • The user can also reference over 80 ANSI C language example programs that match up to the LabVIEW Vis
    • Native VISA drivers for regular Windows or RT Support with the same package.
  • Here you can find documentation pertaining to the AltaAPI-LV. For additional documentation and software, please visit our secure download area.

    TitleSizeType
    AltaAPI Data Sheet258 kBpdf
    AltaAPI Intro2 MBppt
    AltaAPI LabVIEW Review378 kBpdf
    AltaView Data Sheet538 kBpdf
  • ENET-1553
    Alta has combined the industry’s most advanced 32-bit 1553 FPGA protocol engine, AltaCore™, with a real-time IP/UDP thin server in a small low-power, rugged box. The customer can implement their application with the same feature-rich application programming interface, AltaAPI™, as used with standard cards – often without even recompiling - the ultimate in code portability.

    ENET-A429

    PCIC-MA4
    Alta Data Technologies’ PCIC-MA4 interface module is a multi-channel, multi-protocol 1553 and ARINC PCIC card supported by the latest software technologies for PCI systems. The PCIC cards (PMC PCI 32 Carrier) are based on the industry’s most advanced 32-bit FPGA protocol engine, AltaCore™, and by a feature-rich application programming interface, AltaAPI™, which is a multi-layer ANSI C and Windows .NET 2.0 (MSVS C++, C#, VB, NET, Linux, RTOSes) architecture. This hardware and software package provides increased system performance and reduces integration time.

    PCIE1L-1553
    Alta Data Technologies’ PCIE1L-1553 interface module is a multi-channel (1-2), ½ size, Low Profile, One Lane PCI Express 1553 card with the latest software technologies. The PCI Express card is based on the industry’s most advanced 32-bit 1553 FPGA protocol engine, AltaCore™, and by a feature-rich application programming interface, AltaAPI™, which is a multi-layer ANSI C and Windows .NET (MSVS 2005/08/10 C++, C#, VB .NET) architecture. This package provides increased system performance and reduces integration time.

    PCIE1L-A429
    The ARINC PCIE1L-A429 Interface Card and AltaAPI Support Software Represent the Latest ARINC 32-bit FPGA Protocol Engine Technology. Encode and Decode almost Any ARINC-429 PHY Level Label/Word Signal. The First Card in the Industry to Offer Advanced Test Functions of Signal Generation and A/D Signal Capture. The one lane card PCIe is the industry first low profile

    PCIE4L-1553
    Alta Data Technologies’ PCIE4L-1553 interface module is a multi-channel (1-4), ½ size, 4 Lane PCI Express 1553 card supported by the latest software technologies. The PCI Express card is based on the industry’s most advanced 32-bit 1553 FPGA protocol engine, AltaCore™, and by a feature-rich application programming interface, AltaAPI™, which is a multi-layer ANSI C and Windows .NET (MSVS 2005/08/10 C++, C#, VB .NET) architecture. This hardware and software package provides increased system performance and reduces integration time.

    PCIE4L-A429
    The ARINC PCIE4L-A429 Interface Card and AltaAPI Support Software Represent the Latest ARINC 32-bit FPGA Protocol Engine Technology. Encode and Decode almost Any ARINC-429 PHY Level Label/Word Signal. The First Card in the Industry to Offer Advanced Test Functions of Signal Generation and A/D Signal Capture. he 4 lane card (PCIE4L) is normal 1/2 height common for most desktop and larger server systems.

    PCIEC4L-MA4
    Alta Data Technologies’ PCIEC4L-MA4 interface module is a multi-channel, multi-protocol 1553 and ARINC ½ size PCI Express 4 Lane interface card (PMC on 4 Lane PCI Express Carrier) is supported by the latest software technologies. The PCIEC4L card is based on the industry’s most advanced 32-bit FPGA protocol engine, AltaCore™, and by a feature-rich application programming interface, AltaAPI™, which is a multi-layer ANSI C and Windows .NET (MSVS 2005/08/10 C++, C#, VB .NET) architecture. This hardware and software package provides increased system performance and reduces integration time.

    XMC-A429

    CPCIC-MA4 3U/PXI
    Alta Data Technologies’ CPCIC3/6-MA4 (PXI Compatible) interface module is a multi-channel, multi-protocol 1553 and ARINC PMC on 3U or 6U carrier card supported by the latest software technologies. This hardware and software package provides increased system performance and reduces integration time. The First Card in the Industry to Offer Advanced Test Functions of Signal Generation and A/D Signal Capture.

    XMC-MA4
    Alta Data Technologies’ XMC-MA4 interface module is a multi-channel, multi-protocol 1553 and ARINC PMC card supported by the latest software technologies. This hardware and software package provides increased system performance and reduces integration time. The First Card in the Industry to Offer Advanced Test Functions of Signal Generation and A/D Signal Capture.

    MPCIE-1553
    The MPCIE-1553 is a mini PCI Express Full-Mini Type 2 Interface Card for MIL-STD-1553 networks. Coupled with AltaAPI Represents the Latest MIL-STD-1553 32-bit FPGA Protocol Engine Technology with Multi-Layer Software - in an amazingly small package. Our Card and Software Packages are Designed for Fast, Portable Integrations. The MPCIE-1553 is the Only Commercial Off the Shelf (COTS) Card that Passes and can Execute SAE AS4111/4112 Protocol Tests.

  • Click on the video players below to view demo videos of AltaView Bus Analyzer. For optimal viewing, click the full screen button on the player to maximize the video window.

    Alta View 1553
