AltaView Bus Analyzer

Overview
Specifications
Documents
Hardware
Videos
    • Intuitive Look-and-Feel Design Using the Microsoft Office User Interface Style
    • Seamless Multi Protocol (1553 and ARINC) Support. Only Analyzer with Hardware Signal Viewing!
    • XML Setup Files with Schema - Easily Import and Change ICD Setup & EU Data Information
    • Comprehensive View of Bus Activity, Error Detection and Traffic/Loading Statistics. Full Data Archiving to Hard Disk with Filter and ASCII Conversion Utilities
    • Full Monitor, BC, RT, RX/TX ARINC and Playback Operations
    • Error Injection/Detection Capability

    Please see the Documents Tab for Data Sheet and Detailed Presentation Reviews of AltaView for ARINC (A429) and MIL-STD-1553 Products.

    Key Real-Time Bus Monitor/ARINC RX Features

    1. = Auto Discovery and Sorting of of Network/Bus Traffic & ARINC Labels
    2. = Real-Time Displays of Data/Packets. Multi Windows of Real-TIme Displays
    3. = EU Data & Equipment ID Tables for System Parameters. 1-N Tabs of Multi Parameters.
    4. = Signal Capture of First 1553 Channel and First 2 ARINC RX Channels – Industry First for Standard Cards!
      (Not on PMC-1553 or PC104P-1553 Cards)

    Full XML Interface for Setup, ICD and ARINC Equipment Labels!

    More Key Bus Monitor/ARINC RX Features

    • Full Archiving and Snapshot Monitoring with Filters and Triggers Events
    • Powerful Search and Filter Tool. Quickly find Simple or Complex Protocol, Data, Error or Time Events. Use Search tool to Filter Events and Convert to ASCII (Mon or CSV) File
    • Statistical Counters for All Major1553 Protocol Level and Error Events
    • ARINC RX Data Tables, Period Time Displays and Label EU Decode from XML File (Industry First!).

    AltaView



    Complete 1553 BC and ARINC TX Functions

    • Full Frequency/Framing Control
    • Multiple Message and Label Lists. Multi Data Buffers and Labels per Transmissions.
    • Full Error Injection and ARINC Transmission Control (Bit Rates, Encoding, Parity, etc..)
    • ARINC TX Label EU Selection from XML File Definitions.

    AltaView

    Easy to Setup 1553 RT Functions

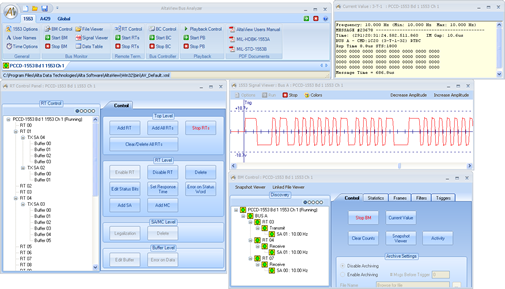

    • Simulate all RTs with Data Wrap with Two Key Clicks!
    • Define Individual RT SA Multi Buffers. Full Legalization to Word Count Level.
    • Complete Error Injection Controls

    AltaView

  • Key Features

    • Intuitive Look-and-Feel Design Using the Microsoft Office User Interface Style
    • Seamless Multi Protocol (1553 and ARINC) Support. Only Analyzer with Hardware Signal Viewing!
    • XML Setup Files with Schema - Easily Import and Change ICD Setup & EU Data Information
    • Comprehensive View of Bus Activity, Error Detection and Traffic/Loading Statistics. Full Data Archiving to Hard Disk with Filter and ASCII Conversion Utilities
    • Full Monitor, BC, RT, RX/TX ARINC and Playback Operations
    • Error Injection/Detection Capability
    • Independent Channel Operations – Run AltaView on one channel while running your application on another channel.
    • LAN Capability – Run on the data Server and View/Control from LAN Client
    • IRIG-B and Ext Clock Synchronization for Time Stamps and Playback
    • Excellent Documentation with 1553/ARINC Standard References and XML Setup Files
    • AltaView Full Functionality is Purchased. Basic BM/RX and BC/TX Functions are Provided at No Cost
  • Here you can find documentation pertaining to the AltaView Bus Analyzer. For additional documentation and software, please visit our secure download area.

    TitleSizeType
    AltaView Data Sheet538 kBpdf
    AltaView for ARINC (PDF)733 kBpdf
    AltaView for ARINC (PPT)2 MBppt
    AltaView for MIL-STD-1553 (PDF)643 kBpdf
    AltaView for MIL-STD-1553 (PPT)1 MBppt
