NLINE-U1553

USB Small, Rugged Interface for 1-2 MIL-STD-1553 channels. In-Line (NLINE) for lab or rugged deployment!

The NLINE-U1553 represents the latest USB 3 technology for 1-2 dual redundant, independent 1553 channels.
Last updated June 11, 2022
Overview
  • 1-2 Dual Redundant, Independent 1553 Busses with USB 3 SuperSpeed. NLINE Package.
  • USB 3 SuperSpeed (Type A Connector) Interface. USB 2 Compatible, But Not Recommended
  • 6 Avionics Discrete Inputs for MIL-1760 or General Use.
  • O-Scope Signal Capture on First Channel
  • IRIG-B Input, RS-485 Discrete, TTL Clock, Triggers
  • Optional NVRAM Write Disable, 2 Temp Sensors

The NLINE-U1553 implements the latest USB 3 SuperSpeed technology for 1-2 dual redundant, independent 1553 channels. Full function capability for Bus Controller (BC), multi-RT (mRT), and Bus Monitor (BM). Also, o-scope signal capture on the first channel to troubleshoot bus signals.

All built-in a small, rugged cable assembly (USB Type A connector on host side) that allows the customer to easily connect with standard 1553 jack connectors, or make their own custom cable with a Lemo break-away standard.  USB 2 backward compatible (but not recommended – USB 3 offers superior throughput performance).

For better host performance (packet throughput), Alta recommends our Thunderbolt or ENET Ethernet based products.

Signal Capture circuitry is included on the first channel for cable troubleshooting and cybersecurity modeling.  The example captures below are shown with our AltaView analyzer, or integrate captures in your application with AltaAPI SDK (included):

AltaView Signal Capture - Signal Troubleshooting - Cybersecurity Modeling

AltaView Signal Capture – Signal Troubleshooting – Cybersecurity Modeling















See Part Numbers Tab for Models and Cable Options.

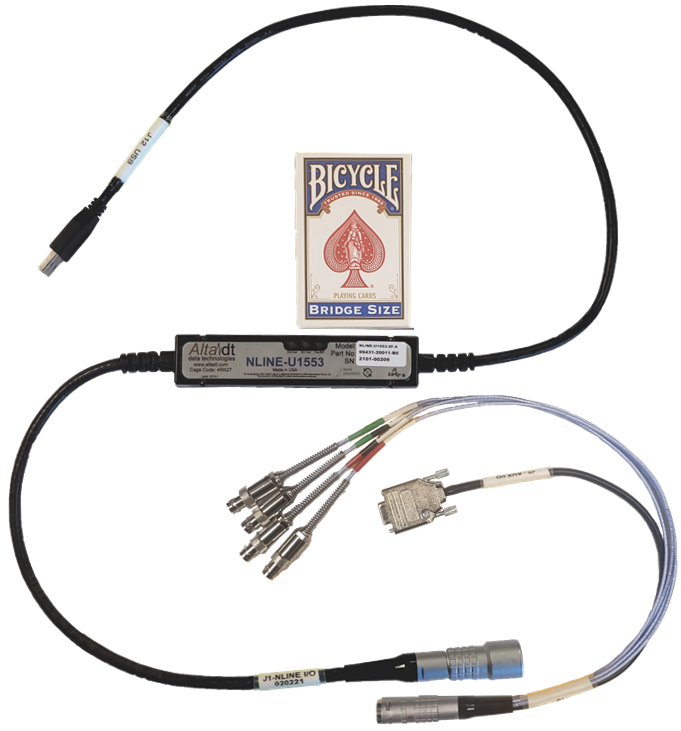

USB 1553 NLINE Image

Specifications

Key Features

  • 1-2 Dual Redundant, Independent 1553 Busses with USB 3 SuperSpeed. NLINE Package.
  • USB 3 SuperSpeed (Type A Connector) Interface. USB 2 Compatible, But Not Recommended
  • 6 Avionics Discrete Inputs for MIL-1760 or General Use.
  • O-Scope Signal Capture on First Channel
  • IRIG-B Input, RS-485 Discrete, TTL Clock, Triggers
  • Optional NVRAM Write Disable, 2 Temp Sensors
  • Temp (C): 0-70, -40 to +85 Optional (-E) Operating. -55 to 120 Storage.
  • One MByte Ram Per Channel
  • Single Application and Polling Interrupts Only
  • Advanced BITs
Software

AltaAPI
Alta’s 1553 and ARINC cards include the most advanced Application Programming Interface (API) library tools in the avionics industry, AltaAPI. The API architecture is a properly OSI modeled development package that provides an extremely flexible design to provide quick porting to various operating systems (such as VxWorks 5.X/6.X/7/MILS, Integrity, LynxOS RTOS), Linux 32- and 64-bit, Solaris 10, LabVIEW and 32- and 64-bit Windows 7/8/8.1/10.

AltaView Bus Analyzer
Alta’s Windows avionics analyzer product, AltaView, provides the most modern technologies for MIL-STD-1553 and ARINC-429 network activity and data analysis. Win XP/Server/7/8/10 Compatible and VMware with ENET/NLINE Ethernet. Ideal for Cybersecurity Testing.

No Seat License or Dongles - Unlimited Software Updates

AltaAPI-LV
Most of Alta’s MIL-STD-1553 & ARINC products include the industry’s most advanced National Instruments’ LabVIEW™ & RT Support Tools, AltaAPI-LV. Built-in native NI LabWindows™ environment and PCI VISA drivers, Alta’s AltaAPI-LV provides a unified NI tool for easy integration to LabVIEW, RT, and LabWindows™ applications. Easily port native DLLs for Testbench or VIs for Veristand.

Accessories
  Part Number Description Picture
BusKit-1B2T-001 2 x Single Stub Couplers
2 x 78 Ohm Terminators with 3-Slot Male Connectors
3 x 15ft Lab Grade Cables with 3-Slot Male Connectors
BusKit-1B4T-001 2 x Dual Stub Couplers
2 x 78 Ohm Terminators with 3-Slot Male Connectors
5 x 15ft Lab Grade Cables with 3-Slot Male Connectors
Part Numbers
  Part Number Description
NLINE-U1553-1D USB SuperSpeed In-Line Appliance with One Channel of Dual Redundant MIL-STD-1553 with Dual Function (BC/Mon or mRT/Mon) Capability.
NLINE-U1553-1F USB SuperSpeed In-Line Appliance with One Channel of Dual Redundant MIL-STD-1553 with Full Function (BC/mRT and Mon) Capability.
NLINE-U1553-2D USB SuperSpeed In-Line Appliance with Two Channels of Dual Redundant MIL-STD-1553 with Dual Function (BC/Mon or mRT/Mon) Capability.
NLINE-U1553-2F USB SuperSpeed In-Line Appliance with Two Channels of Dual Redundant MIL-STD-1553 with Full Function (BC/mRT and Mon) Capability.
Optional 1553/AUX Cable Assemblies
NLCAB-1553-P1-1-01 NLINE P1-Lemo Cable Assembly with One Channel of 1553 3-Lug BJ77 Stub Connectors.
NLCAB-1553-P1-2-01 NLINE P1-Lemo Cable Assembly with Two Channels of 1553 3-Lug BJ77 Stub Connectors.
NLCAB-1553-P1-1-AUX01 NLINE P1-Lemo Cable Assembly with One Channel of 1553 3-Lug BJ77 Stub Connectors and DB15 AUX Connector.
NLCAB-1553-P1-2-AUX01 NLINE P1-Lemo Cable Assembly with Two Channels of 1553 3-Lug BJ77 Stub Connectors and DB15 AUX Connector.
NLCON-J1-01 Lemo FGG.2K.326.CLA85Z Male Connector
Options: Example NLINE-U1553-2F-ADEIN
-A AltaView SW Enabled
-D Direct Coupling (Price Per Channel)
-E Extended Temp (-40 to +85 Indust Components)
-I Tx Inhibit (BM Function Only)
-N NVRAM Write Disabled
