ENET-A429

eNet-A429™ provides Ethernet Connectivity for Controlling ARINC-429 Channels and Auto RX Bridging

eNet-A429™ is an innovative product that provides “remoting” of ARINC operations on 10/100/1000 Ethernet IP/UDP local area networks (LAN). eNet-429 is a small, low-power, rugged device that provides connectivity for 1-8 ARINC 429/575/573/717 Channels.
Last updated June 12, 2022
Overview
  • 10/100/1000 Ethernet Real-Time Converter for 4-8 ARINC Channels
  • 4 Channels RX or TX; 4 RX Only Channels
  • Thin-Server, Real-Time UDP Ethernet to/from ARINC **
  • Remote ARINC Devices on the LAN
  • Auto RX Mode for ARINC Ethernet Bridging
  • 5-30 VDC, 300-900 mAmp max/300-700 mAmp typical - small size!!

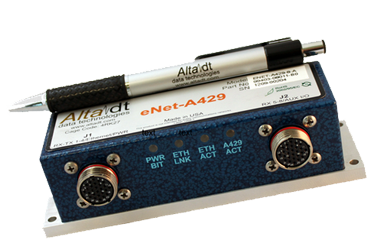

ENET-A429™ is an innovative product that provides “remoting” of ARINC operations on 10/100/1000 Ethernet IP/UDP local area networks (LAN).  eNet-429 is a small, low-power, rugged device that provides connectivity for 1-8 ARINC 429/575/573/717 Channels – Ideal for remoting ARINC connections for in-field applications or point-point lab usage.

Alta has combined the industry’s most advanced 32-bit ARINC FPGA protocol engine, AltaCore, with a real-time IP/UDP thin server. The customer can implement their application with the same feature-rich application programming interface, AltaAPI, as used with standard cards – often without even recompiling – the ultimate in code portability.

Optional J1 and J2 Cable Assemblies Provided – Please See Part Numbers Above.

China RoHS ROHS
Specifications

Key Features

  • 10/100/1000 Ethernet Real-Time Converter for 4-8 ARINC Channels
  • 4 Channels RX or TX; 4 RX Only Channels
  • Thin-Server, Real-Time UDP Ethernet to/from ARINC **
  • Remote ARINC Devices on the LAN
  • Auto RX Mode for ARINC Ethernet Bridging
  • 5-30 VDC, 300-900 mAmp max/300-700 mAmp typical - small size!!
  • 200g Weight, POE Optional
  • Ideal for Lab or Rugged Deployed Applications
  • IRIG-B RX Decode, PPS, Triggers, Discretes
  • NOTE: On shared channels: TX lines have an extra RX load; when powered-off, RX channels can have severe voltage drain – use only dedicated RX channels for critical systems.
Documents

Here you can find documentation pertaining to the ENET-A429. For additional documentation and software, please visit our secure download area.

Title Size Type
eNet-A429 Data Sheet 424.49 KB eNet-A429 Data Sheet
AltaAPI Data Sheet 257.55 KB AltaAPI Data Sheet
AltaView Data Sheet 520.48 KB AltaView Data Sheet
ARINC Tutorial and Reference ARINC Tutorial and Reference
White Paper – Avionics Ethernet Appliances 403.96 KB White Paper – Avionics Ethernet Appliances
Software

AltaAPI
Alta’s 1553 and ARINC cards include the most advanced Application Programming Interface (API) library tools in the avionics industry, AltaAPI. The API architecture is a properly OSI modeled development package that provides an extremely flexible design to provide quick porting to various operating systems (such as VxWorks 5.X/6.X/7/MILS, Integrity, LynxOS RTOS), Linux 32- and 64-bit, Solaris 10, LabVIEW and 32- and 64-bit Windows 7/8/8.1/10.

AltaView Bus Analyzer
Alta’s Windows avionics analyzer product, AltaView, provides the most modern technologies for MIL-STD-1553 and ARINC-429 network activity and data analysis. Win XP/Server/7/8/10 Compatible and VMware with ENET/NLINE Ethernet. Ideal for Cybersecurity Testing.

No Seat License or Dongles - Unlimited Software Updates

Part Numbers
  Part Number Description
ENET-A429-4 ENET Appliance with 4 Shared Tx/Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: AltaAPISoftware.
ENET-A429-8 ENET Appliance with 4 Shared Tx/Rx Channels and 4 Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels). Included: AltaAPISoftware.
ENETCAB-J1-01 ENET J1 DB26
ENETCAB-J2-01 ENET J2 DB26 Auxiliary I/O Cable Assembly
ENETCON-J1-01 ENET J1 Mating Connector 801-007-16M10-26PA
ENETCON-J2-01 ENET J2 Mating Connector 801-007-16M10-26PB
ENETDCAP-J2-01 ENET-J2 Dust Cap 667-218-M-N10
Options: Example ENET-A429-8-AE
-A AltaView SW Full Functionality Enabled
-E Ext Temp Parts (-40 to 85C)
-F Conformal Coating
-N NVRAM Write Disabled
-P POE for ENET Products
