ENET-A429P

Advanced ARINC-429 Testing with ENET-A429P Ethernet Appliance. Parametrics TX Variable Voltage, Digital Signal Generator and RX Signal Capture.

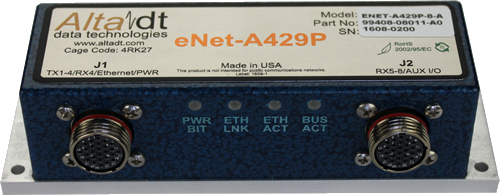

eNet-A429P™ is an innovative product that provides “remoting” of ARINC operations on 10/100/1000 Ethernet IP/UDP local area networks (LAN). eNet-A429P is a small, low-power, device ideal for details ARINC signal testing with variable voltaqe control of the first 3 TX channels.
Last updated June 12, 2022
Overview
  • Ethernet to 8 ARINC with Parametrics: 3 TX Variable Voltage, 1 RX/TX Shared, 4 RX
  • ~±3.5-±12 Vpp Variable Voltage with ~ 50 mV Steps o 1 uSec Signal Generator
  • 8-bit, 1 uSec A/D Signal Capture on Two RX Channels!
  • Auto RX Mode for ARINC->Ethernet Bridging
  • IRIG-B RX Decode, PPS, Trigger, 2 Avionics & RS-485 Discretes
  • Encode/Decode Almost any ARINC-429 PHY Signal - Great Development Packages

ENET-A429P™ is an innovative product that provides “remoting” of ARINC operations on 10/100/1000 Ethernet IP/UDP local area networks (LAN). eNet-A429P is a small, low-power, device ideal for details ARINC signal testing with variable voltaqe control of the first 3 TX channels. Alta has combined the industry’s most advanced 32-bit ARINC FPGA protocol engine, AltaCore™, with a real-time IP/UDP thin server. The customer can implement their application with the same feature-rich application programming interface, AltaAPI™, as used with standard cards – often without even recompiling – the utlimate in code portability.

**NOTE: ENET-A429P (server) is a real-time Ethernet/ARINC device, but your computers’ (client) IP stack may not be! The eNet-A429 device provides real-time UDP receive and transmit requests to ARINC buffers, but the client’s IP/UDP stack will induce path delays as compared to backplane cards. For many applications (<100-1000 packets per second), this product will provide unparalleled flexibility in ARINC configurations (much better than USB devices). Contact Alta for test results on various OS and computer configurations – your system results may vary.

Optional J1 and J2 Cable Assemblies Provided – Please See Part Numbers Above.

China RoHS ROHS
Specifications

Key Features

  • Ethernet to 8 ARINC with Parametrics: 3 TX Variable Voltage, 1 RX/TX Shared, 4 RX
  • ~±3.5-±12 Vpp Variable Voltage with ~ 50 mV Steps o 1 uSec Signal Generator
  • 8-bit, 1 uSec A/D Signal Capture on Two RX Channels!
  • Auto RX Mode for ARINC->Ethernet Bridging
  • IRIG-B RX Decode, PPS, Trigger, 2 Avionics & RS-485 Discretes
  • Encode/Decode Almost any ARINC-429 PHY Signal - Great Development Packages
  • NOTE: On shared channels: TX lines have an extra RX load; when powered-off, RX channels can have severe voltage drain – use only dedicated RX channels for critical systems.
Documents

Here you can find documentation pertaining to the ENET-A429P. For additional documentation and software, please visit our secure download area.

Title Size Type
AltaView Data Sheet 520.48 KB AltaView Data Sheet
AltaView for ARINC (PDF) 733.13 KB AltaView for ARINC (PDF)
ARINC Tutorial and Reference ARINC Tutorial and Reference
AltaAPI LabVIEW Review 468.46 KB AltaAPI LabVIEW Review
AltaAPI Data Sheet 257.55 KB AltaAPI Data Sheet
Software

AltaAPI
Alta’s 1553 and ARINC cards include the most advanced Application Programming Interface (API) library tools in the avionics industry, AltaAPI. The API architecture is a properly OSI modeled development package that provides an extremely flexible design to provide quick porting to various operating systems (such as VxWorks 5.X/6.X/7/MILS, Integrity, LynxOS RTOS), Linux 32- and 64-bit, Solaris 10, LabVIEW and 32- and 64-bit Windows 7/8/8.1/10.

AltaAPI-LV
Most of Alta’s MIL-STD-1553 & ARINC products include the industry’s most advanced National Instruments’ LabVIEW™ & RT Support Tools, AltaAPI-LV. Built-in native NI LabWindows™ environment and PCI VISA drivers, Alta’s AltaAPI-LV provides a unified NI tool for easy integration to LabVIEW, RT, and LabWindows™ applications. Easily port native DLLs for Testbench or VIs for Veristand.

AltaView Bus Analyzer
Alta’s Windows avionics analyzer product, AltaView, provides the most modern technologies for MIL-STD-1553 and ARINC-429 network activity and data analysis. Win XP/Server/7/8/10 Compatible and VMware with ENET/NLINE Ethernet. Ideal for Cybersecurity Testing.

No Seat License or Dongles - Unlimited Software Updates

Part Numbers
  Part Number Description
ENET-A429P-8 ENET Appliance with 3 Tx Variable Voltage. 1 Shared Tx/Rx and 4 Rx and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels).
ENETCAB-J1-01 ENET J1 DB26 USB Power-Ethernet-ARINC Cable Assembly
ENETCAB-J2-01 ENET J2 DB26 ARINC and I/O Cable Assembly
ENETCON-J1-01 ENET J1 Mating Connector 801-007-16M10-26PA
ENETCON-J2-01 ENET J2 Mating Connector 801-007-16M10-26PB
ENETDCAP-J2-01 ENET-J2 Dust Cap 667-218-M-N10
Options (alpha order): Example ENET-A429-8-AE
-A AltaView SW Full Functionality Enabled
-E Ext Temp Parts (-40 to 85C)
-F Conformal Coating
-N NVRAM Write Disabled
