ENETX-1553

Connect 3-4 Channels of MIL-STD-1553 to Ethernet with Real-Time, FPGA UDP Packet Interface

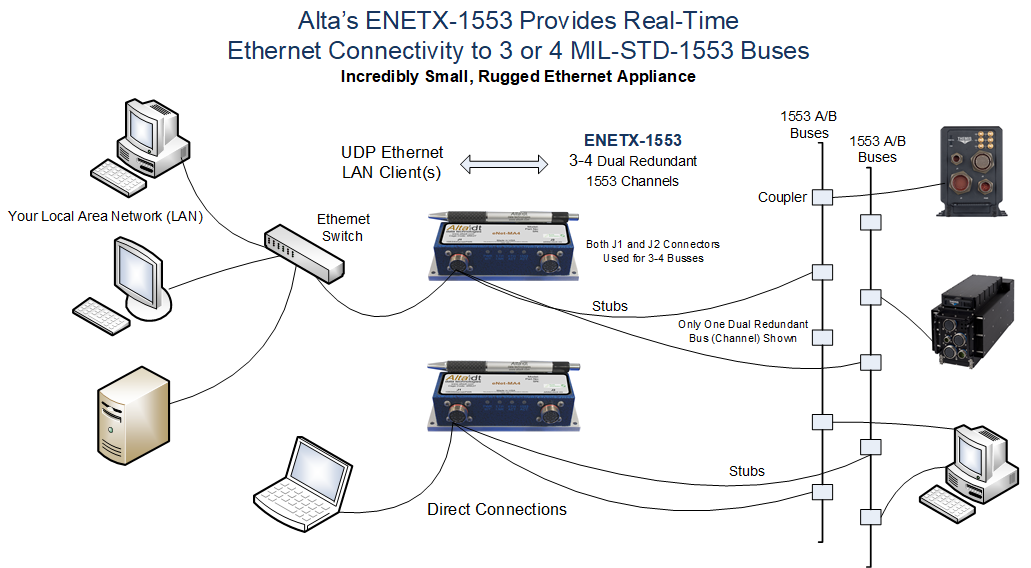

ENETX-1553™ is an innovative product that provides “remoting” of 1553 operations on 10/100/1000 Ethernet IP/UDP local area networks (LAN). ENETX-1553 is a small, low-power, rugged device that provides real-time Ethernet connectivity to for three or four dual redundant 1553 (A/B) buses (channels). Ideal for remoting 1553 connections for in-field applications or point-point lab usage.
Last updated August 20, 2019
Overview
  • 3 or 4 Independent, Dual Redundant 1553 Buses Ethernet Converter
  • Ideal for BM/Playback and Light-Moderate BC/RT Operations (<50% Bus Loading All Channels)
  • Remote 1553 Devices on the LAN – Small Size, Rugged
  • Ideal for Lab or Rugged Deployed Applications
  • 14.2 x 7 x 3.5cm, 280g without cabling
  • Auto start for 1553 UDP Broadcasts - No Setup Programming!

ENETX-1553™ is an innovative product that provides “remoting” of 1553 operations on 10/100/1000 Ethernet IP/UDP local area networks (LAN).  ENETX-1553 is a small, low-power, rugged device that provides real-time Ethernet connectivity to for three or four dual redundant 1553 (A/B) buses (channels). Ideal for remoting 1553 connections for in-field applications or point-point lab usage. AltaAPI provides and highly portable BSD SDK and National Instruments LabVIEW and LabWindows.  ENET products are unique in the market as they have a hardware, FPGA real-time UDP engine – no OS or IP stacks – provides maximum throughput and ultimate virus protection.

For 1-2 Channels, Please See ENET-MA4 or ENETX-MA4. – These are smaller, Less Expensive Units.

J1 and J2 Cables Optional – See Part Numbers Tab
For 1-2 Channel Applications, Please see ENET2-1553 or ENET-MA4 Products.

Specifications

Key Features

  • 3 or 4 Independent, Dual Redundant 1553 Buses Ethernet Converter
  • Ideal for BM/Playback and Light-Moderate BC/RT Operations (<50% Bus Loading All Channels)
  • Remote 1553 Devices on the LAN – Small Size, Rugged
  • Ideal for Lab or Rugged Deployed Applications
  • 14.2 x 7 x 3.5cm, 280g without cabling
  • Auto start for 1553 UDP Broadcasts - No Setup Programming!
  • Highly Portable BSD Socket Layer for Almost Any Operating System (OS).
  • 5-32 VDC Conditioned Power - USB 5V, 3A
  • Extended Temp Parts with –E Option
  • MIL-STD-1553/1553B Notice II & IV, MIL-STD-1760, Link 16
  • Advanced Startup, User and Continuous BIT
  • IP-V4 - Static, Programmable IP Addressing
Documents

Here you can find documentation pertaining to the ENETX-1553. For additional documentation and software, please visit our secure download area.

TitleSizeType
ENETX-1553 Data Sheet593 KB ENETX-1553 Data Sheet
AltaAPI Data Sheet258 KB AltaAPI Data Sheet
AltaView Data Sheet520 KB AltaView Data Sheet
Software

AltaAPI
Alta’s 1553 and ARINC cards include the most advanced Application Programming Interface (API) library tools in the avionics industry, AltaAPI. The API architecture is a properly OSI modeled development package that provides an extremely flexible design to provide quick porting to various operating systems (such as VxWorks 5.X/6.X/7/MILS, Integrity, LynxOS RTOS), Linux 32- and 64-bit, Solaris 10, LabVIEW and 32- and 64-bit Windows 7/8/8.1/10.

AltaView Bus Analyzer
Alta’s Windows avionics analyzer product, AltaView, provides the most modern technologies for MIL-STD-1553 and ARINC-429 network activity and data analysis. Win XP/Server/7/10 Compatible.

AltaAPI-LV
Most of Alta’s MIL-STD-1553 & ARINC products include the industry’s most advanced National Instruments’ LabVIEW™ & RT Support Tools, AltaAPI-LV. Built in native NI LabWindows™ environment and PCI VISA drivers, Alta’s AltaAPI-LV provides a unified NI tool for easy integration to LabVIEW, RT and LabWindows™ applications.

Accessories
 Part NumberDescriptionPicture
BusKit-1B2T-0012 x Single Stub Couplers
2 x 78 Ohm Terminators with 3-Slot Male Connectors
3 x 15ft Lab Grade Cables with 3-Slot Male Connectors
BusKit-1B4T-0012 x Dual Stub Couplers
2 x 78 Ohm Terminators with 3-Slot Male Connectors
5 x 15ft Lab Grade Cables with 3-Slot Male Connectors
Videos

Click on the screenshots above to view demo videos of AltaView Bus Analyzer. For optimal viewing, please maximize your browser window.

Alta View 1553
Alta View ARINC
Ethernet
Part Numbers
 Part NumberDescription
***See Cable Options Below***
ENETX-1553-3DENETX Appliance with Three Channels of Dual Redundant MIL-STD-1553 with Dual Function (BC/Mon or mRT/Mon) Capability. Included:AltaAPI Software.
ENETX-1553-3FENETX Appliance with Three Channels of Dual Redundant MIL-STD-1553 with Full Function (BC/mRT and Mon) Capability. Included:AltaAPI Software.
ENETX-1553-4DENETX Appliance with Four Channels of Dual Redundant MIL-STD-1553 with Dual Function (BC/Mon or mRT/Mon) Capability. Included:AltaAPI Software.
ENETX-1553-4FENETX Appliance with Four Channels of Dual Redundant MIL-STD-1553 with Full Function (BC/mRT and Mon) Capability. Included:AltaAPI Software.
Optional Cables
ENETXCAB-1553-J1-01 Third 1553 Channel Mini DB26 USB Power
ENETXCAB-1553-J1-02 Third and Forth 1553 Channels Mini DB26 USB Power
ENETXCAB-MA4-J2-02 First Two Channels 1553 Ethernet RJ45 & Mini DB26
ENETCON-J1-01ENET J1 Mating Connector 801-007-16M10-26PA
ENETCON-J2-01ENET J2 Mating Connector 801-007-16M10-26PB
ENETDCAP-J2-01ENETX-J2 Dust Cap 667-218-M-N10
ENETDCAP-J2-01ENETX-J2 Dust Cap 667-218-M-N10
Options: Example ENETX-1553-2F-AEFIN
-AAltaView SW Enabled
-DDirect Coupling
-EExtended Temp (-40 to 85 Indust Components)
-FConformal Coating
-ITx Inhibit (BM Function Only)
-NNVRAM Write Disabled
